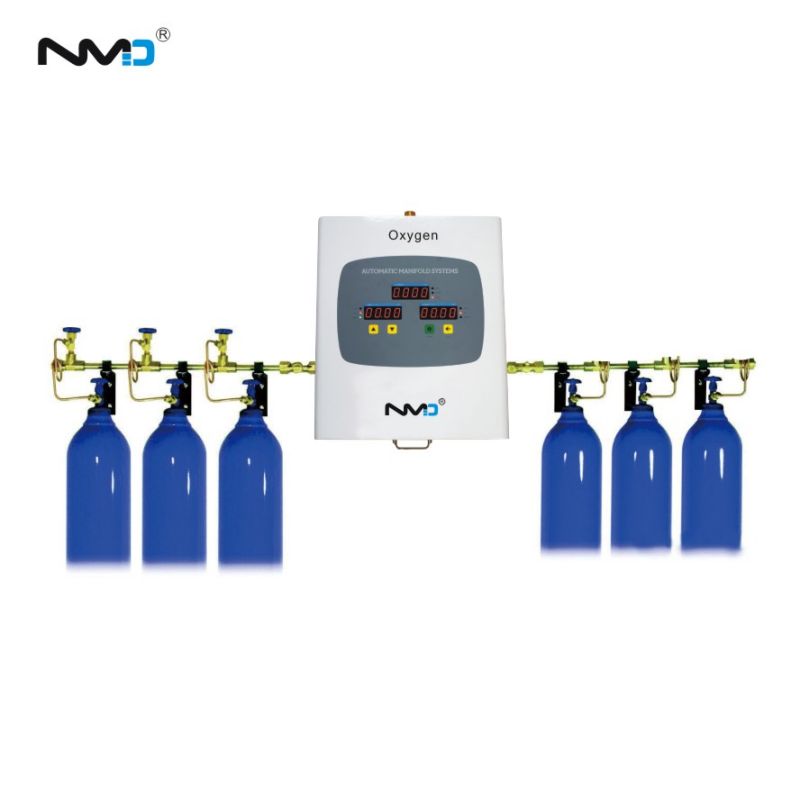

Weclearmed® LED automatic oxygen manifold is one kind of our manifold.It's fully automatic and the parts are made of high-purity medical brass.It’s suitable for gas cylinders, liquid oxygen, oxygen generator and most gases, eg . oxygen, air , nitrous oxide, argon, carbon dioxide nitrogen, etc. Under the working state,one side gas supply,the other side for standby.Supply the medical gas to ward building alternately and constantly.

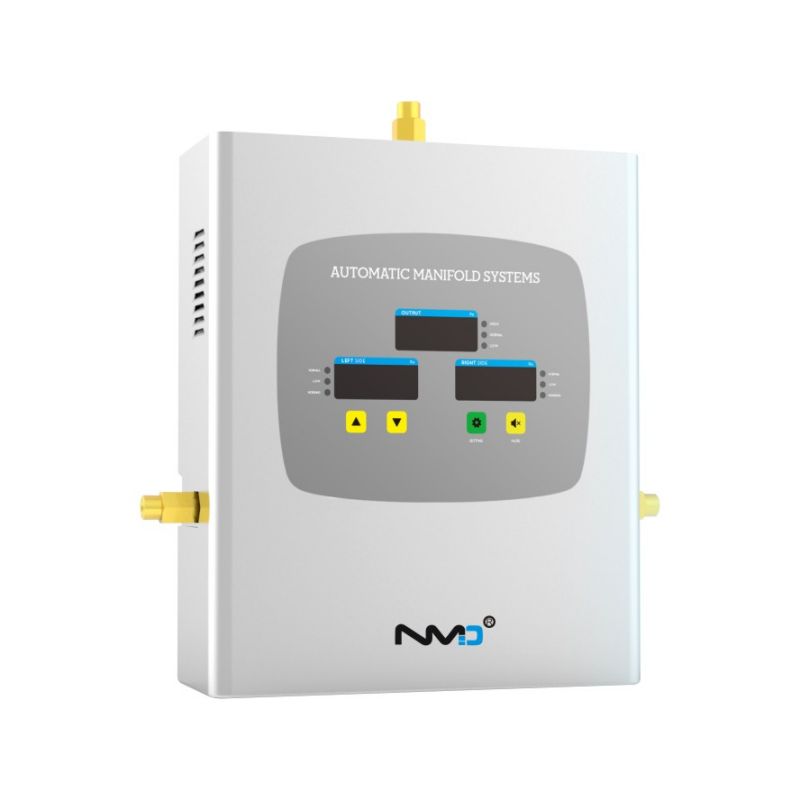

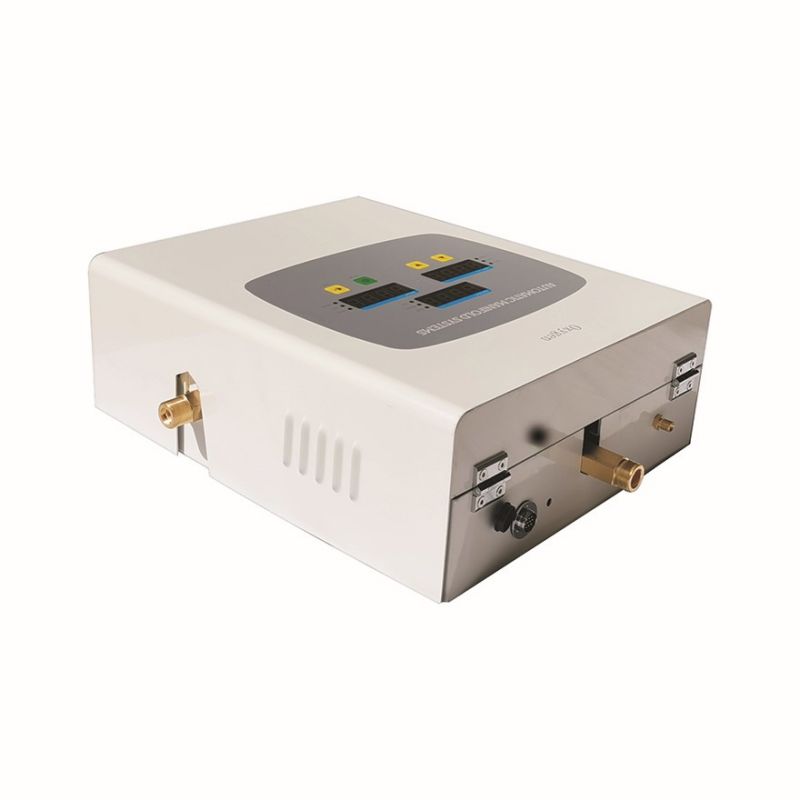

LED Automatic Oxygen Manifold

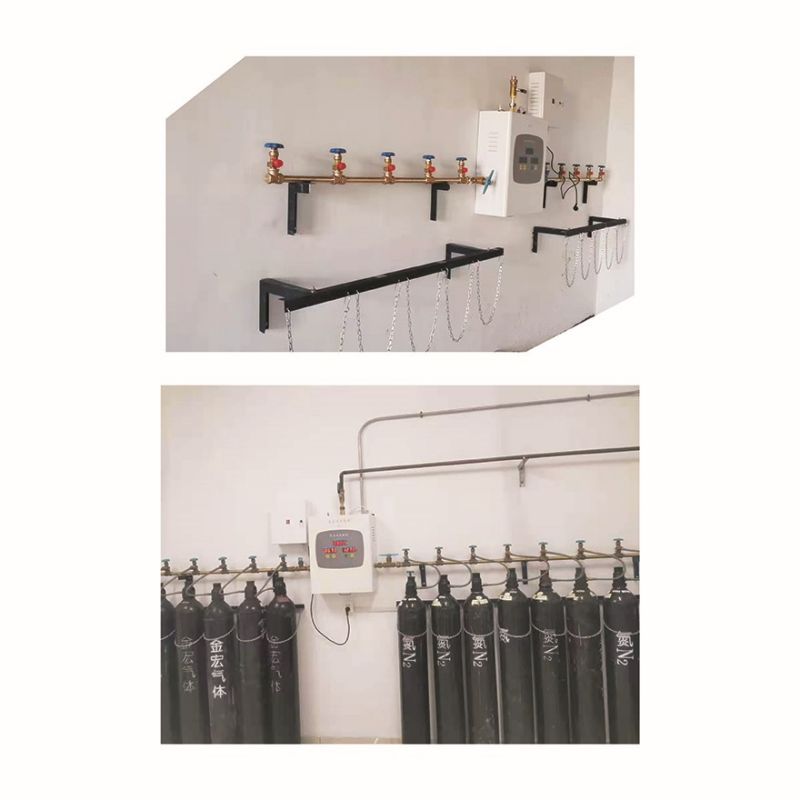

Oxygen manifold is one of the important oxygen supply equipment in hospital. This LED automatic oxygen manifold is the latest fully automatic manifold with high quality. The material is HPB59-1, high quality high strength brass, which can resistant to high pressure 200bar impact. It consists of multiple oxygen cylinders connected together by pipes to form a centralized oxygen supply system. The LED automatic oxygen manifold is fully enclosed metal box with alarm device which can remote alarm and very easy to operate and repair. It can be keep supplying the gas for long time when there’s no electric. And the LED automatic oxygen manifold can be applied a variety of gases: oxygen, nitrogen, nitrous oxide, carbon dioxide, etc. The manufacture Weclearmed® has got the ISO9001 and ISO13485 for quality assurance.
Product name: | LED Automatic Oxygen Manifold |
Color: | White |
Place of origin: | Zhejiang, China |
Brand name: | Weclearmed |
Input pressure left and right: | 1-200bar |
Outlet pressure: | 4-12bar(adjustable) |
Normal flow: | >100m3/h |
Pipe joint thread: | m33x2.0(adjustable) |
Switching pressure: | 6 bar~10 bar (can setting) |
Power supply: | ac220v 50hz |
Input power: | 100W |
Operating voltage: | DC24v/2A |
Switching time: | 10ms |
High pressure regulator relief valve opening pressure: | 20 bar |
Low pressure regulator relief valve opening pressure: | 14 bar |
External dimension: | 52*55*22 cm |
Working environment: | -5℃~40℃ |
Relative humidity: | 15%~80% |
Atmospheric pressure: | 80 kpa ~ 106 kpa |

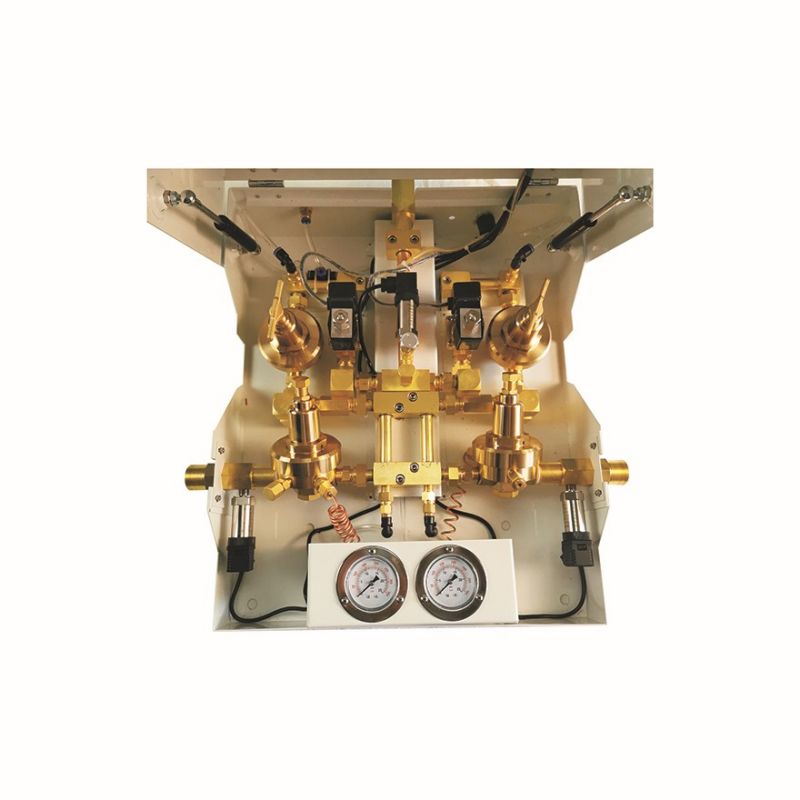

3.1. First-stage decompressor: the upper limit of intake pressure is 20Mpa and the pressure is reduced to 1.5Mpa
3.2. The two-stage decompressor reduces the pressure from 1.5Mpa to 0.35~0.7Mpa
3.3. High voltage sensor: connected with the LCD motherboard through the wire, sense the pressure, once the pressure is detected below the set limit value, it will transmit signals to the LCD motherboard, stimulate the alarm sound and light alarm
3.4. Pressure gauge: in the case of power failure, the LCD screen can not work, mechanical pressure gauge can be used to read data directly
3.5.Solenoid valve: used to control both sides of the gas on and off, can also be forcibly switched through the LCD screen.
Normally only one side can be opened, the left side first. Meet special circumstances, such as power failure, both sides of
the valve at the same time open, do uninterrupted air supply
3.6. Left and right air intakes: both ends are connected with oxygen generator, cylinder or liquid oxygen. The air inlet pressure is generally 1-20Mpa, and the default thread of pipe interface is M33*2 (can be customized)
3.7. Hydraulic elastic rod: can pop out when opening the box, so that people can save more effort when opening the box,and play a fixed role, in the box has been opened to stabilize the box cover, prevent falling injury
3.8. DG4 globe valve: used for outlet switch function, convenient maintenance of solenoid valve and other air routes
3.9. One-way valve: This valve is a one-way valve to prevent gas backflow
3.10. Air outlet: The gas is finally discharged from the air outlet into the main pipe
3.11. Inner discharge safety valve: When the pressure in the high-pressure decompression chamber is too high, the safety valve will automatically open and automatically close after discharging excess gas to ensure the safety of the manifold
3.12. External relief valve: When the inner relief valve cannot meet the demand, the external relief valve will be started and the excess gas will be discharged to the outside of the chassis
Note: Lifetime warranty, all can be customized
