LCD Automatic Oxygen Manifold

Weclearmed® LCD automatic oxygen manifold is one kind of our manifold.It's fully automatic and the parts are made of high-purity medical brass.It’s suitable for gas cylinders, liquid oxygen, oxygen generator and most gases, eg . oxygen, air , nitrous oxide, argon, carbon dioxide nitrogen, etc. Under the working state,one side gas supply,the other side for standby.Supply the medical gas to ward building alternately and constantly.

Send Inquiry

Product Description

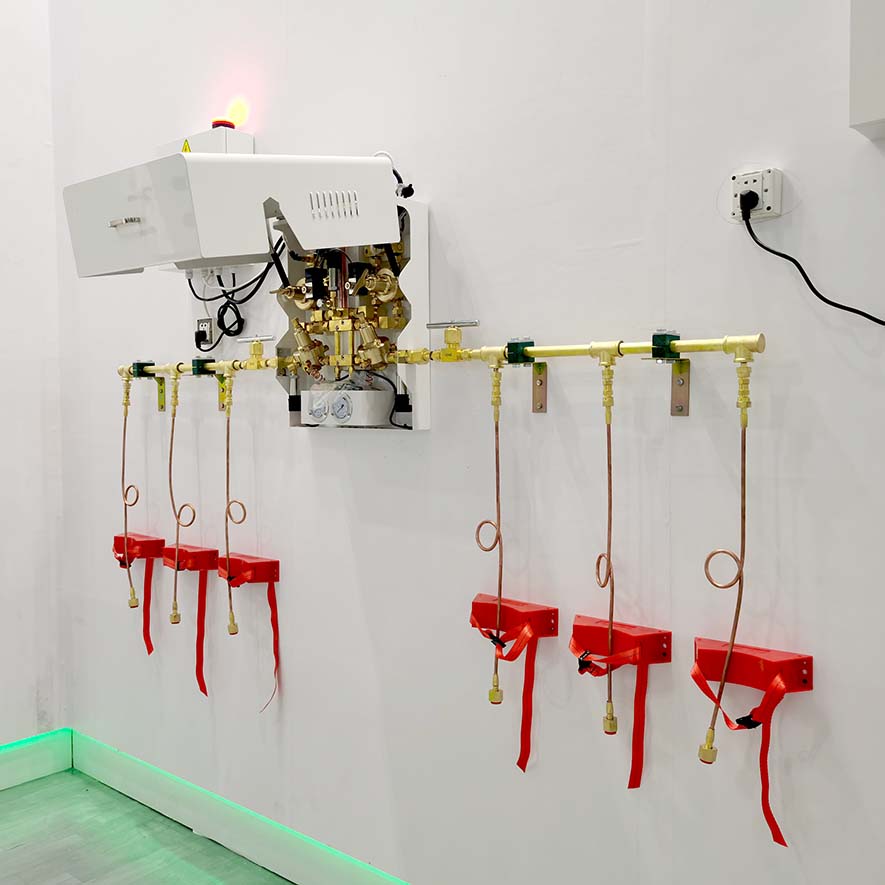

Weclearmed® LCD automatic oxygen manifold is used a fully closed metal box with built-in high-purity medical brass parts.The size is generally 600×500×200mm.It has LCD display on the outside of cabinet and 3D animation display.Automatic manifold has touch screen with remote control,more easy to use.It has flexible automatic switching but also can do manual.It’s equipped with sound and light alarm device, to achieve human-machine interaction.This series of control system adopts electronic switching control and inner parts with full brass valve and copper pipe.It has stable pressure and large flow which can provide stable pressure to second stage regulator in ward building or directly supply to the terminal.

Parameters:

Left/right side input pressure	0.4~15Mpa
Outlet pressure	0.4~1.0Mpa (adjustable)
Flow rate	＞100M3/h
Inlet connection	M33×2（customizable）
Switching pressure	0.6~1Mpa
Switching time	3S
Operating voltage	AC24V
Operating current	250mA
Safety valve opening pressure	1.25Mpa
Overall size	600×500×200
