Ambulance Oxygen Manifold

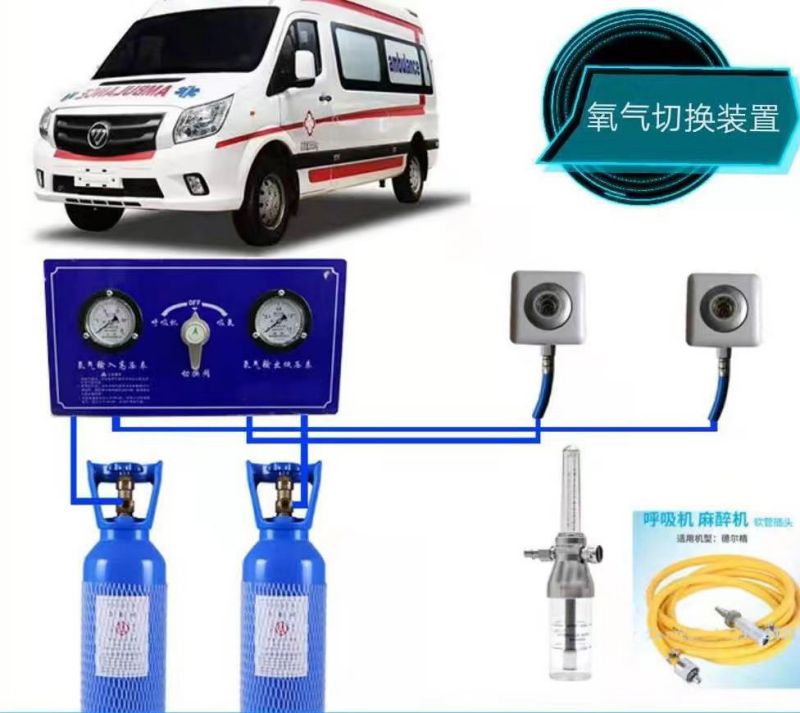

Weclearmed® ambulance oxygen manifold is suitable for ambulances with large oxygen consumption, where bottled high-pressure oxygen is fed into the main pipe of the control panel through a metal hose. After depressurized, the high pressure oxygen is transported to the oxygen terminal through the low pressure pipeline, which is used as a source of oxygen for first aid. The working principle is to decompress the high pressure oxygen into low pressure, which is delivered to the oxygen terminal through the respective pipeline.

Send Inquiry

Product Description

Ambulance Oxygen Manifold

1.Product Introduction of the Ambulance Oxygen Manifold

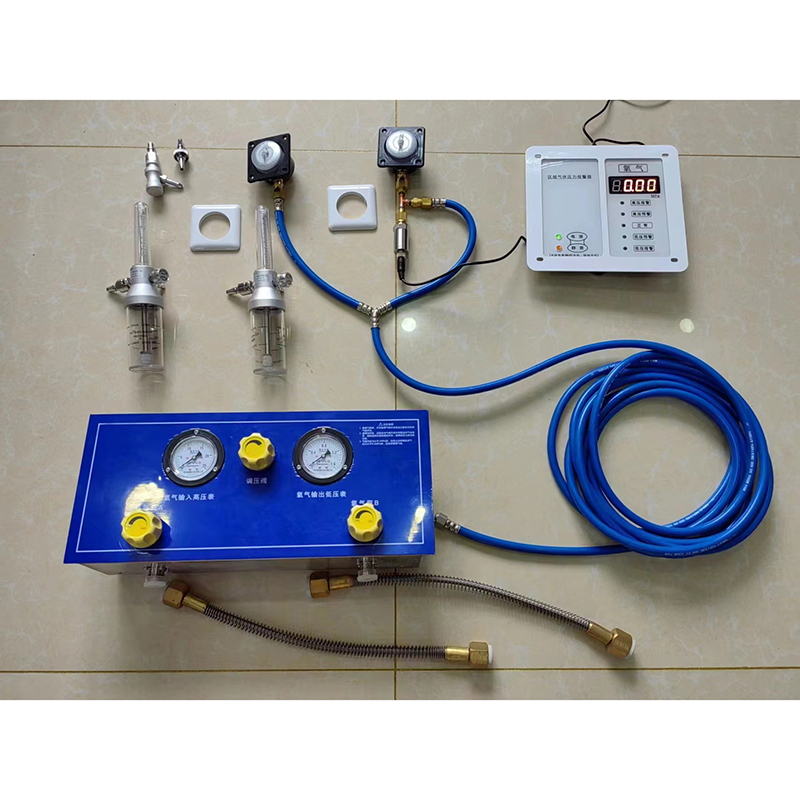

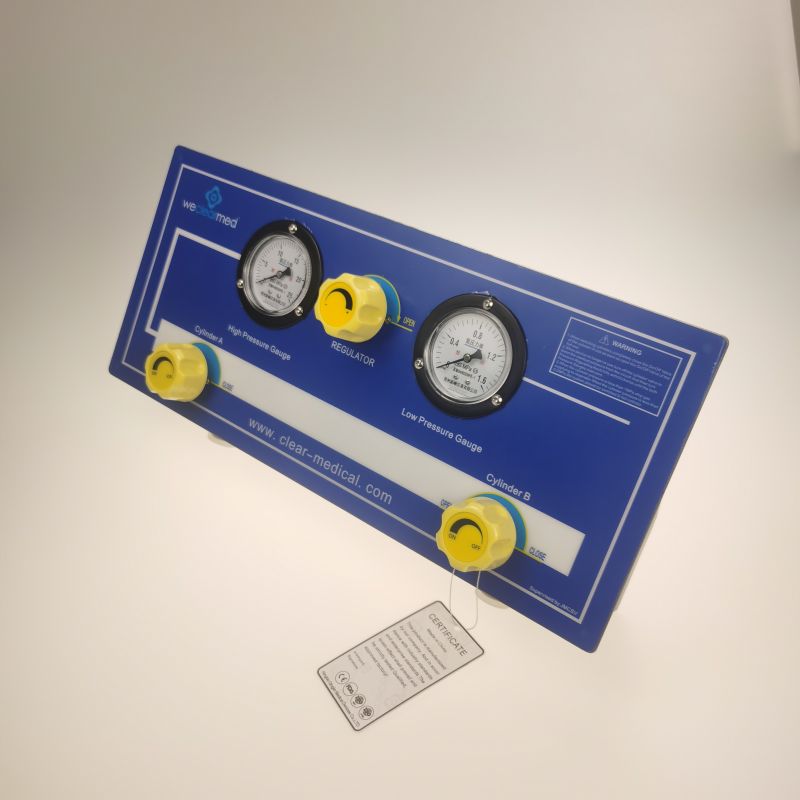

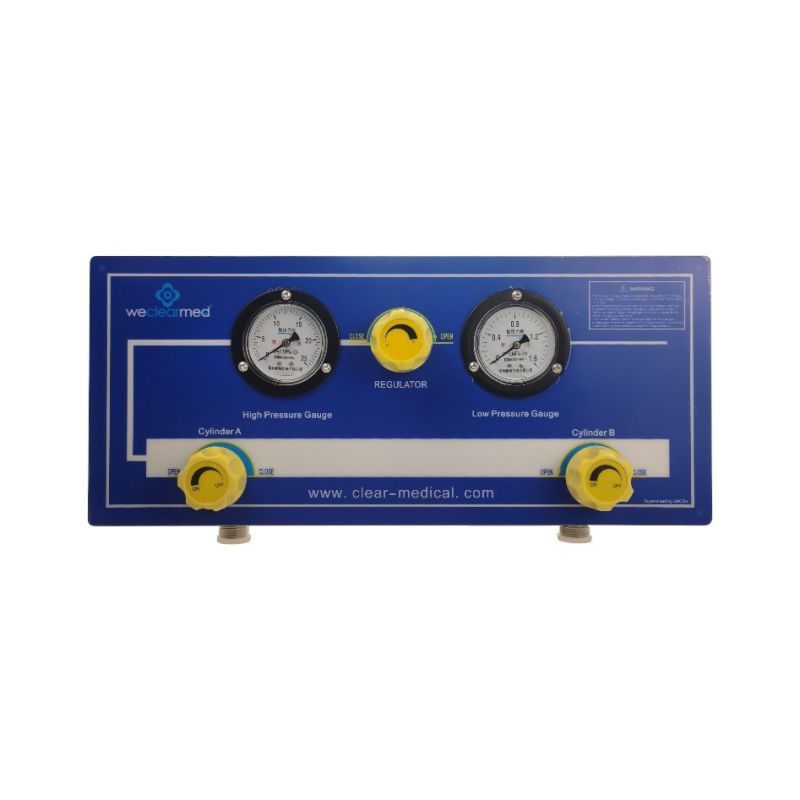

Weclearmed® ambulance oxygen manifold has a control panel which can connect two or more oxygen cylinders at the same time. To decompress the high pressure oxygen to a low pressure. Ambulance manifold system is a kind of equipment of centralized gas supply system.The control panel consists of metal hoses which are connected to the oxygen cylinders through G5/8 threads, and each cylinder is connected to the control panel with a corresponding high-pressure switching valve, which controls the respective high-pressure pipeline separately.The high-pressure piping connecting each oxygen cylinder at the end of the switching valve connected each other. The tee joint at the centre of gas manifold to link the high-pressure gauge, regulator and high-pressure pipeline.The high pressure gauge is used to monitor the oxygen pressure in the control panel's high pressure tubing.The regulator is used to regulate the high pressure oxygen to the required pressure and then output to the low pressure end.The low-pressure end is connected to the oxygen terminal, safety valve and low-pressure gauge. The low-pressure gauge is used to monitor the pressure in the low-pressure pipeline of the control surface. The safety valve automatically exhausts air when the output pressure is higher than the design pressure to ensure the safety and stability of the output pressure. The ambulance oxygen manifold since the installation and commissioning, acceptance of qualified within one year from the warranty service, the warranty period；Parts that are damaged due to product quality issues will be replaced free.

2.Product Parameter of the Ambulance Oxygen Manifold

model	YDJHC-A2	YDJHC-A3	YDJHC-A4	YDJHC-A5
Input pressure	2～15（MPa）	2～15（MPa）	2～15（MPa）	2～15（MPa）
Output pressure	0～0.6（MPa）	0～0.6（MPa）	0～0.6（MPa）	0～0.6（MPa）
Usage	Oxygen pressure reducing valve	Oxygen pressure reducing valve	Oxygen pressure reducing valve	Oxygen pressure reducing valve
Applicable medium	oxygen	oxygen	oxygen	oxygen
Safety valve exhaust pressure	0.8 ～0.9（MPa）	0.8 ～0.9（MPa）	0.8 ～0.9（MPa）	0.8 ～0.9（MPa）
structure	Pressure regulation	Pressure regulation	Pressure regulation	Pressure regulation
No. Of input/output	2/1	3/1	4/1	5/1
Output flow rate	≥60L/min	≥60L/min	≥60L/min	≥60L/min
