Home > Products > Medical Gas Stations > Medical Gas Cylinders > Medical Seamless Steel Gas Cylinders

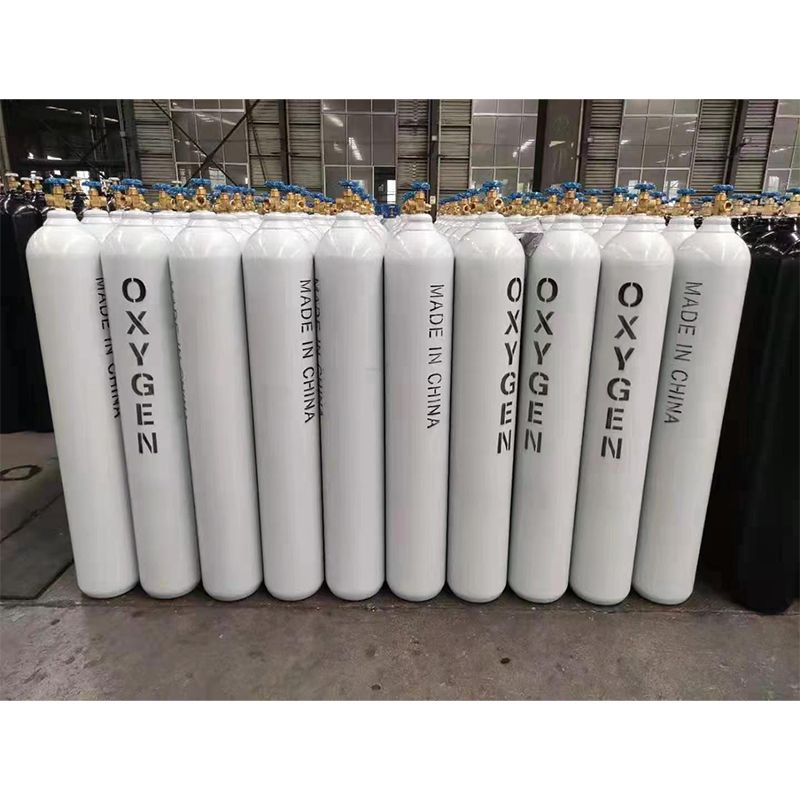

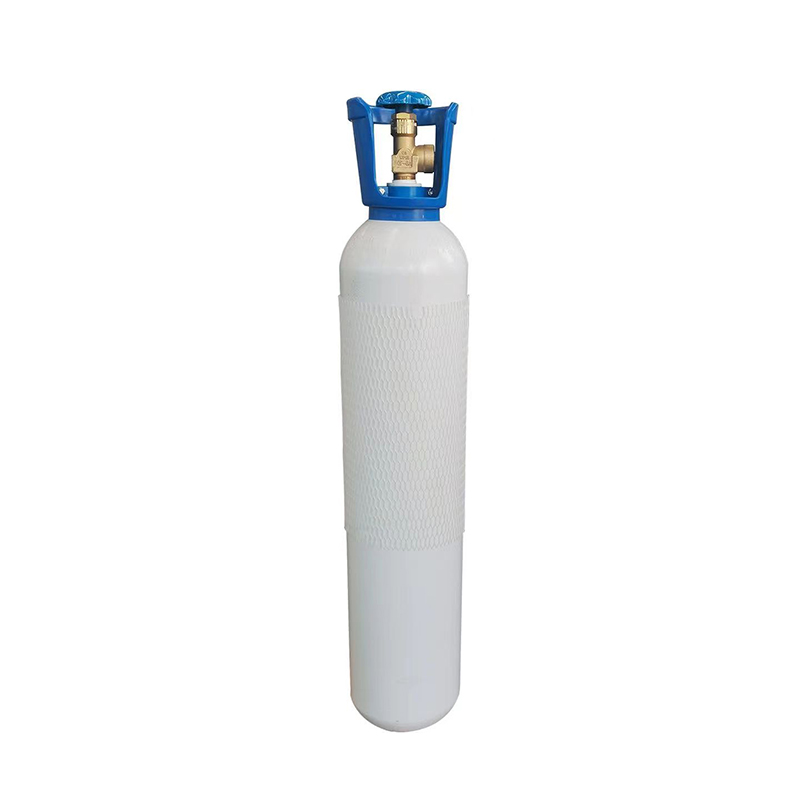

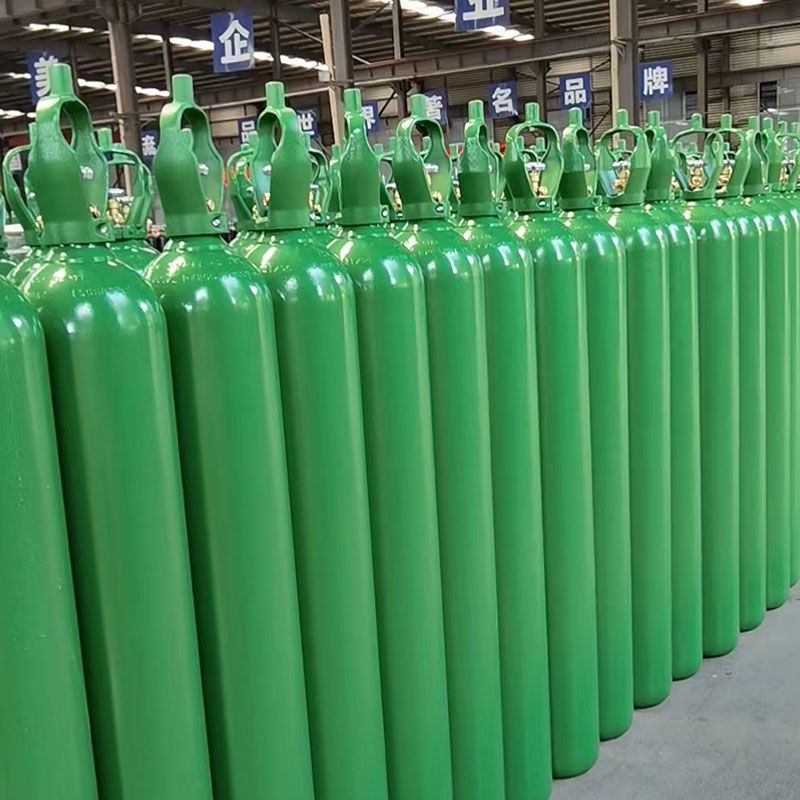

Medical Seamless Steel Gas Cylinders
Weclearmed® medical seamless steel gas cylinders are used to storage and transport of gas and liquefied gas. Our medical air cylinder are designed to give patients and people the greatest possible freedom and autonomy. The medical gas tank is re-inflatable and easy to use.
Send Inquiry
Product Description
Weclearmed® gas cylinders are made of seamless steel with special treatment such as anti-corrosion coatings and explosion-proof membranes to ensure safe use. Cylinder containers are available in a wide range of sizes and types to suit the different gases.
Medical Seamless steel gas cylinders have the following characteristics:
1. Big capacity:the standard capacity is up to 50L
2. Durable: Steel is hard than aluminum so steel cylinder is more strong.
3. Explosion-proof
Common types of cylinders:

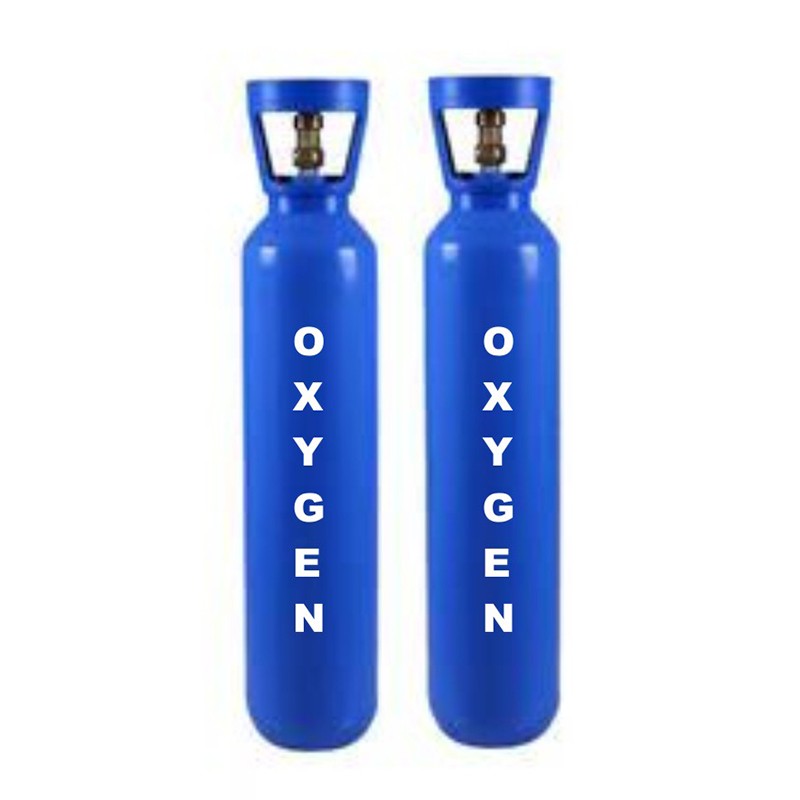

Oxygen cylinders: used for storing oxygen, usually with accessories such as pressure-reducing valves.
Nitrogen cylinders: used to store nitrogen, similar to oxygen cylinders.
Hydrogen cylinders: used for storing hydrogen, usually with safety devices.
Liquid gas cylinders: used for storing liquid gases, such as liquefied petroleum gas, liquid nitrogen, etc.
Filling medium:air, O₂,H₂, N , Ar , He , Ne , Kr , CH4 , NO , CO , CO2 , SF6 , CHF3 , C2F6 , Xe , C2H6 , C2H4 , C2H2F2 , SiH4 , HCI , N2O , PH3 , BF3 , CF4 , NF3 , AR-M , Ar-M-F , N-M-F , N2-M , NH3 , CI2 , BCI3 , CF3Br , SO2
| Type | Outside diameter (mm) | Capacity(L) | Height (without valve) (mm) | Weight (without valve) (kg) | Working pressure (Mpa) | Test pressure (Mpa) | Wall thickness(mm) |
| QJ140-4-15 | 140 | 4 | 380 | 6.3 | 15 | 22.5 | 3.6 |
| QJ140-6-15 | 6 | 530 | 8.3 | ||||
| QJ140-8-15 | 8 | 680 | 10.3 | ||||
| QJ140-10-15 | 10 | 830 | 12.3 | ||||
| QJ152-8-15 | 152 | 8 | 580 | 9.9 | 15 | 22.5 | 3.6 |
| QJ152-10-15 | 10 | 700 | 11.6 | ||||
| QJ152-12-15 | 12 | 820 | 13.4 | ||||
| QJ152-15-15 | 15 | 1000 | 16 | ||||
| QJ159-10-15 | 159 | 10 | 635 | 11.2 | 15 | 22.5 | 3.6 |
| QJ159-12-15 | 12 | 750 | 13 | ||||
| QJ159-15-15 | 15 | 920 | 15.6 | ||||
| QJ159-18-15 | 18 | 1090 | 18.2 | ||||
| QJ219-20-15 | 219 | 20 | 690 | 23.9 | 15 | 22.5 | 5 |
| QJ219-23-15 | 23 | 780 | 26.2 | ||||
| QJ219-26-15 | 26 | 870 | 29.2 | ||||
| QJ219-29-15 | 29 | 950 | 30.9 | ||||
| QJ219-32-15 | 32 | 1040 | 34.0 | ||||
| QJ219-34-15 | 34 | 1100 | 35.6 | ||||
| QJ219-36-15 | 36 | 1160 | 37.3 | ||||
| QJ219-38-15 | 38 | 1220 | 39.2 | ||||
| QJ219-40-15 | 40 | 1280 | 41.0 | ||||
| QJ219-42-15 | 42 | 1340 | 42.7 | ||||
| QJ219-45-15 | 45 | 1430 | 45.7 | ||||
| QJ219-47-15 | 47 | 1490 | 47.1 | ||||
| QJ219-50-15 | 50 | 1575 | 49.3 | ||||
| QJ219-21-15 | 219 | 21 | 730 | 27.5 | 15 | 22.5 | 5.7 |
| QJ219-23-15 | 23 | 790 | 29.5 | ||||
| QJ219-25-15 | 25 | 850 | 31.5 | ||||
| QJ219-28-15 | 28 | 940 | 34.5 | ||||
| QJ219-30-15 | 30 | 1000 | 36.5 | ||||
| QJ219-32-15 | 32 | 1060 | 38.5 | ||||
| QJ219-34-15 | 34 | 1120 | 40.4 | ||||
| QJ219-36-15 | 36 | 1180 | 42.4 | ||||
| QJ219-38-15 | 38 | 1240 | 44.4 | ||||
| QJ219-40-15 | 40 | 1300 | 46.4 | ||||
| QJ219-42-15 | 42 | 1360 | 48.4 | ||||
| QJ219-45-15 | 45 | 1450 | 51.3 | ||||
| QJ219-47-15 | 47 | 1510 | 53.3 | ||||
| QJ219-50-15 | 50 | 1600 | 56.3 | ||||
| QJ232-38-15 | 232 | 38 | 1110 | 41.3 | 15 | 22.5 | 5.4 |
| QJ232-40-15 | 40 | 1160 | 43 | ||||
| QJ232-42-15 | 42 | 1215 | 44.8 | ||||
| QJ232-45-15 | 45 | 1290 | 47.3 | ||||
| QJ232-47-15 | 47 | 1345 | 49.2 | ||||
| QJ232-50-15 | 50 | 1425 | 51.9 | ||||
| QJ232-52-15 | 52 | 1480 | 53.7 | ||||
| QJ232-38-15 | 232 | 38 | 1120 | 45.7 | 15 | 22.5 | 6 |
| QJ232-40-15 | 40 | 1175 | 47.8 | ||||
| QJ232-42-15 | 42 | 1230 | 49.9 | ||||
| QJ232-45-15 | 45 | 1305 | 52.6 | ||||
| QJ232-47-15 | 47 | 1365 | 54.9 | ||||
| QJ232-50-15 | 50 | 1445 | 57.9 | ||||
| QJ232-52-15 | 52 | 1495 | 59.7 |
The above steel cylinders material are all 37MN
