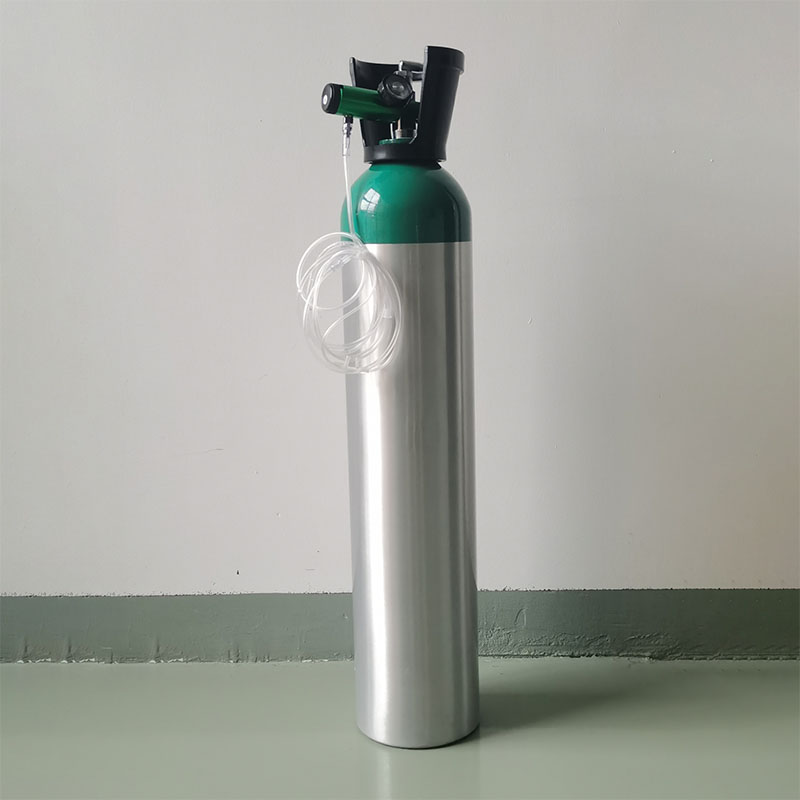

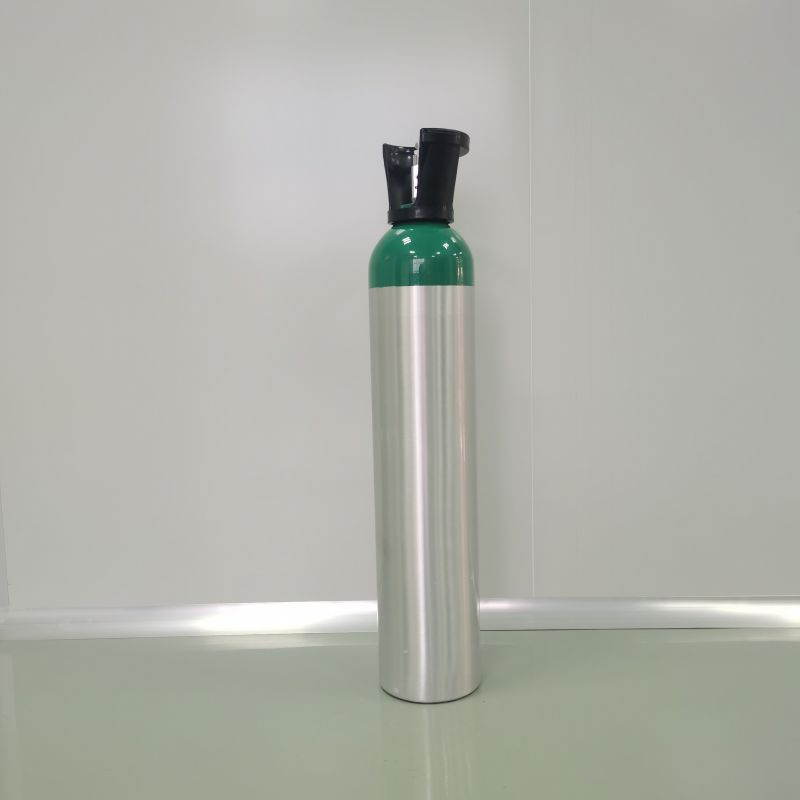

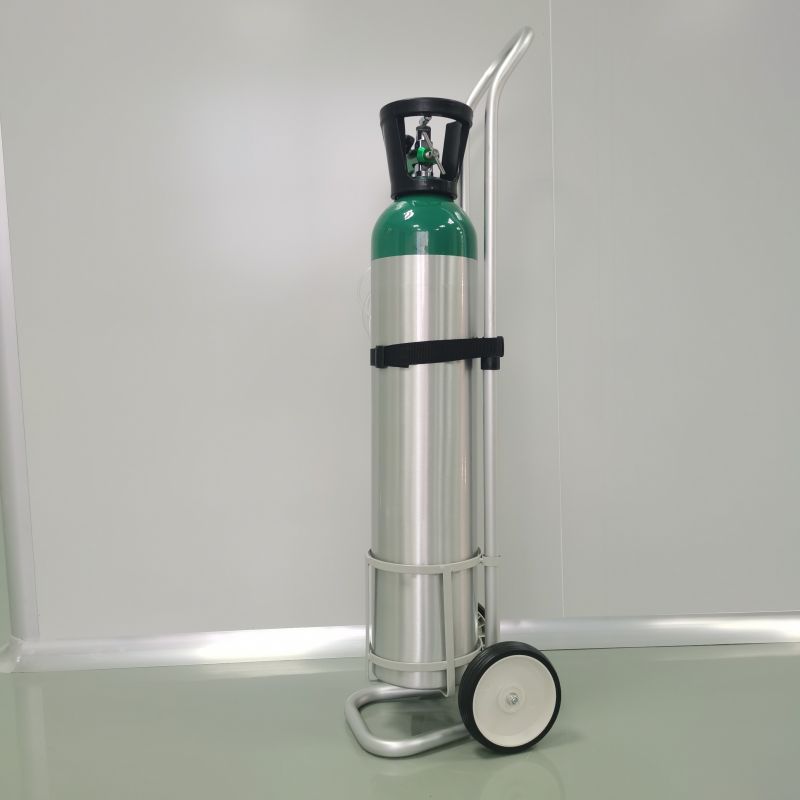

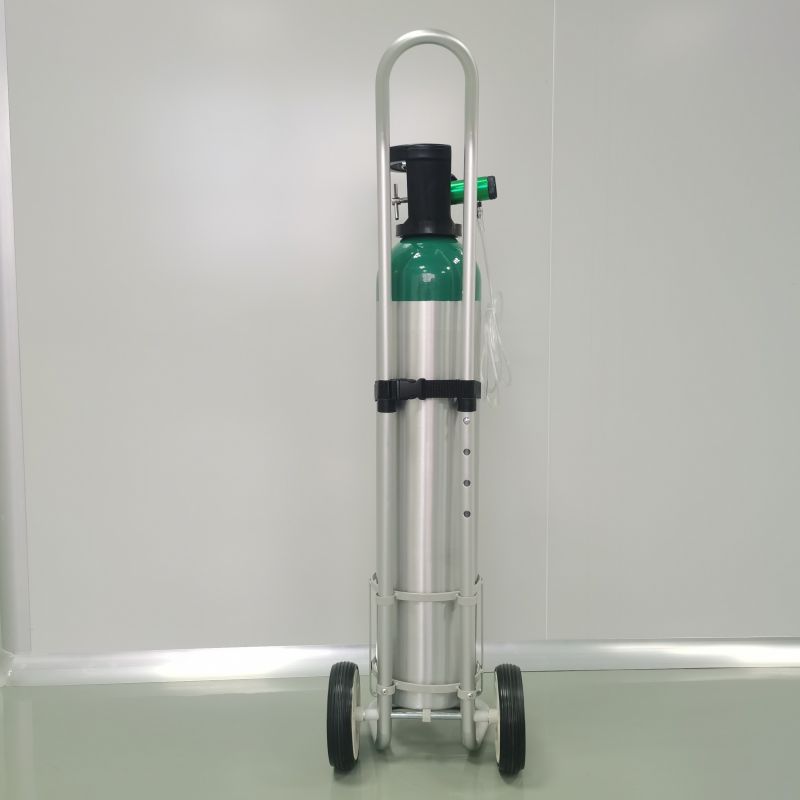

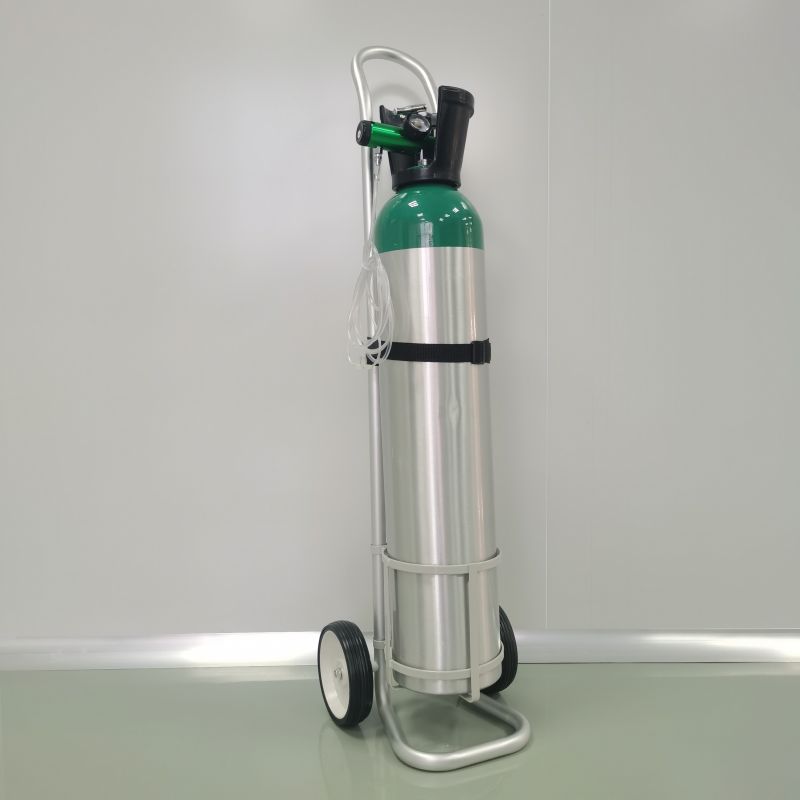

Weclearmed® is a qualified factory for medical devices.Our medical aluminum alloy gas cylinder are used to storage and transport of gas and liquefied gas.Typically used for storing and transporting low boiling point gases such as oxygen, nitrogen, carbon dioxide, etc.The medical gas cylinder is easy to move,usually used for out door sports,hiking,emergency treatment.
Aluminum gas cylinder is lightweight, durable and corrosion resistant.
Weclearmed® Medical Aluminum Alloy Gas cylinder has the following characteristics:
1. Lightweight: Aluminum cylinders are lighter than steel cylinders, easier to carry and transport.
2. Durable: Aluminum has high corrosion and impact resistance and can withstand high-pressure and high-temperature environments.

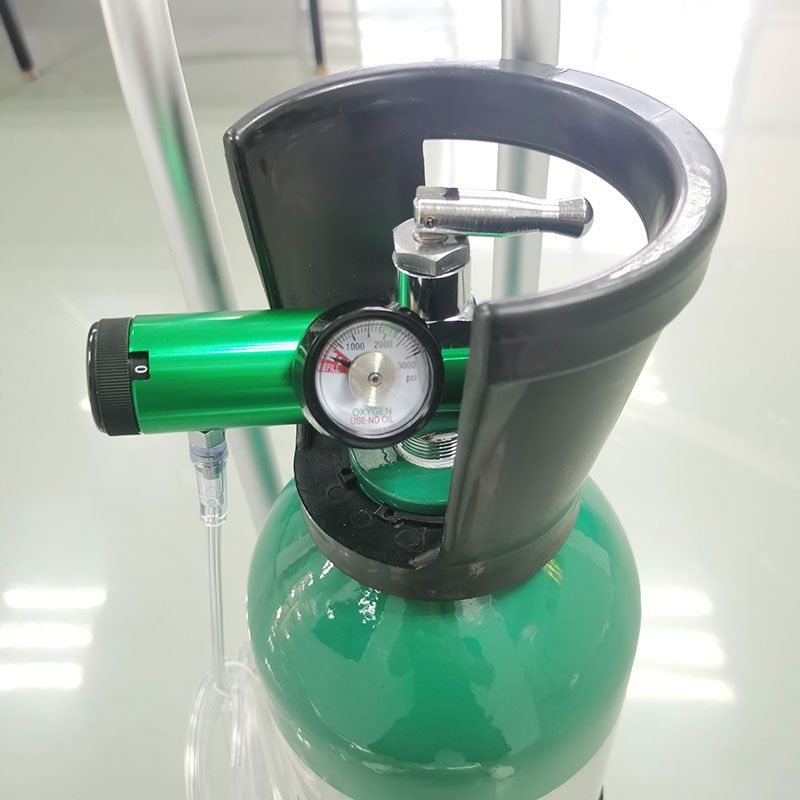

3. Safety: Aluminum cylinders are made with a special process to store high-pressure gases, and cylinder pressure gauges can use monitor and control the pressure.
Filling medium:air, O₂,H₂, N , Ar , He , Ne , Kr , CH4 , NO , CO , CO2 , SF6 , CHF3 , C2F6 , Xe , C2H6 , C2H4 , C2H2F2 , SiH4 , HCI , N2O , PH3 , BF3 , CF4 , NF3 , AR-M , Ar-M-F , N-M-F , N2-M , NH3 , CI2 , BCI3 , CF3Br , SO2
Type | Diameter | Capacity | Weight | Length |
Working
|
(MM) | (L) | (KG) | (MM) | (BAR) | |
QJ50.5-0.21-207-H | 50.5 | 0.21 | 0.69 | 190 | 207 |
QJ50.5-0.38-207-T | 50.5 | 0.38 | 0.57 | 295 | 207 |
QJ60-0.5-207-T | 60 | 0.5 | 0.7 | 305 | 207 |
QJ60-0.6-166-H | 60 | 0.6 | 0.71 | 332 | 166 |
QJ61-0.35-300-T | 61 | 0.35 | 0.95 | 260 | 300 |
QJ61-0.45-300-T | 61 | 0.45 | 1.05 | 310 | 300 |
QJ61-0.47-300-H | 61 | 0.47 | 1.1 | 310 | 300 |
QJ81-0.83-125-H | 81 | 0.83 | 0.75 | 246 | 125 |
QJ81-1-125-H | 81 | 1 | 0.88 | 280 | 125 |
QJ81-1-153-H | 81 | 1 | 0.88 | 303 | 153 |
QJ90.8-0.42-207-H | 90.8 | 0.42 | 0.86 | 148 | 207 |
QJ90.8-0.79-207-H | 90.8 | 0.79 | 1.35 | 220 | 207 |
QJ111-1.68-139-H | 111 | 1.68 | 1.75 | 280 | 139 |
QJ111-2.75-139-H | 111 | 2.75 | 2.5 | 423 | 139 |
QJ111-4.55-139-H | 111 | 4.55 | 3.67 | 652 | 139 |
QJ111-2-150-H | 111 | 2 | 2.33 | 330 | 150 |
QJ111-2.8-150-H | 111 | 2.8 | 3.01 | 420 | 150 |
QJ111-3-150-H | 111 | 3 | 2.71 | 460 | 150 |
QJ111-4-150-H | 111 | 4 | 3.79 | 610 | 150 |
QJ140-4-150-H | 140 | 4 | 4.55 | 415 | 150 |
QJ140-6-150-H | 140 | 6 | 5.4 | 580 | 150 |
QJ140-8-150-H | 140 | 8 | 7.02 | 740 | 150 |
QJ152-10-150-H | 152 | 10 | 8.6 | 775 | 150 |
