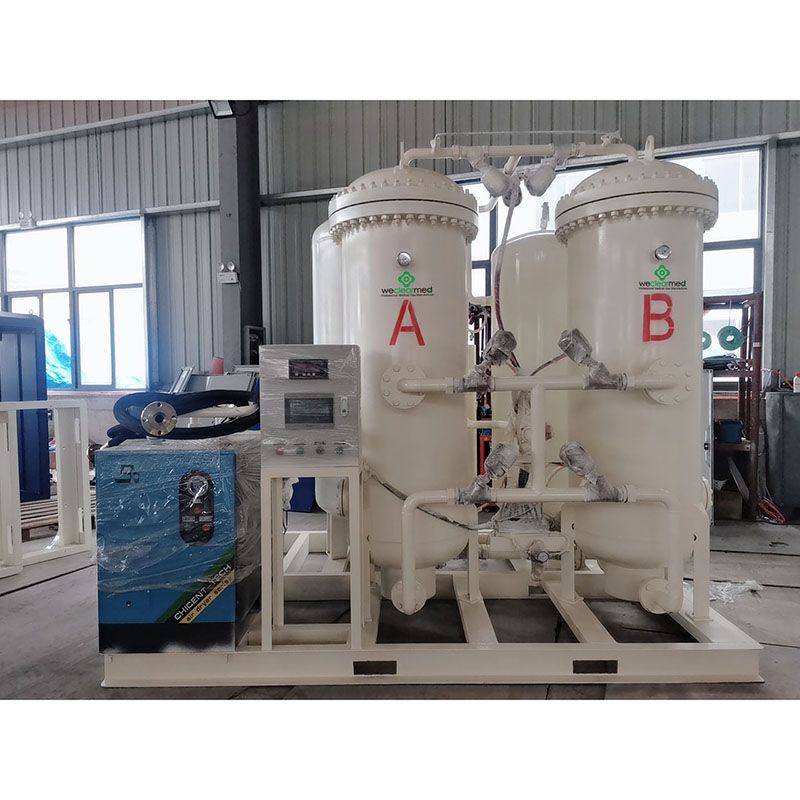

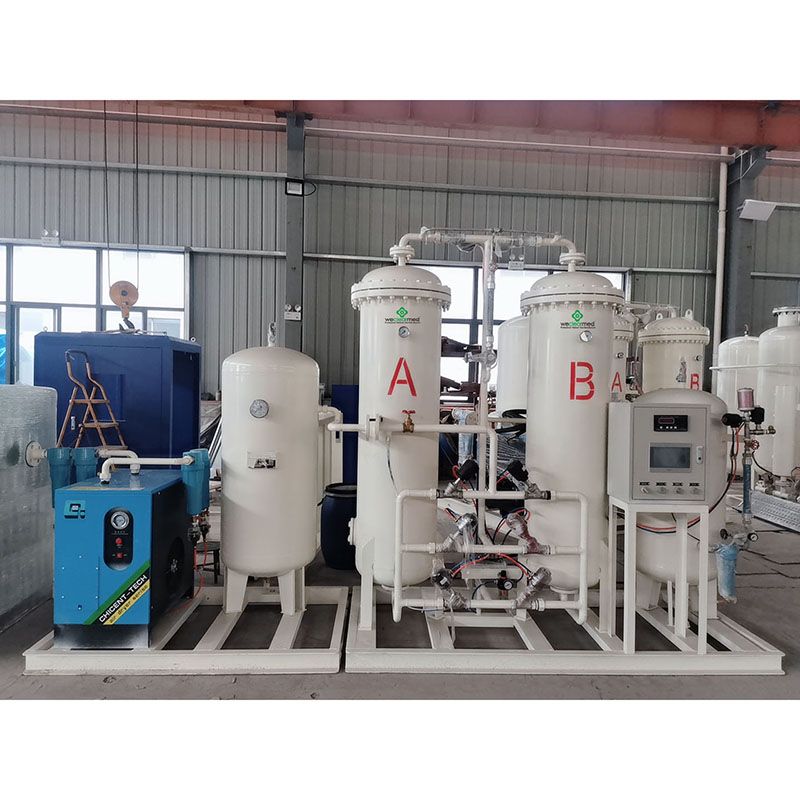

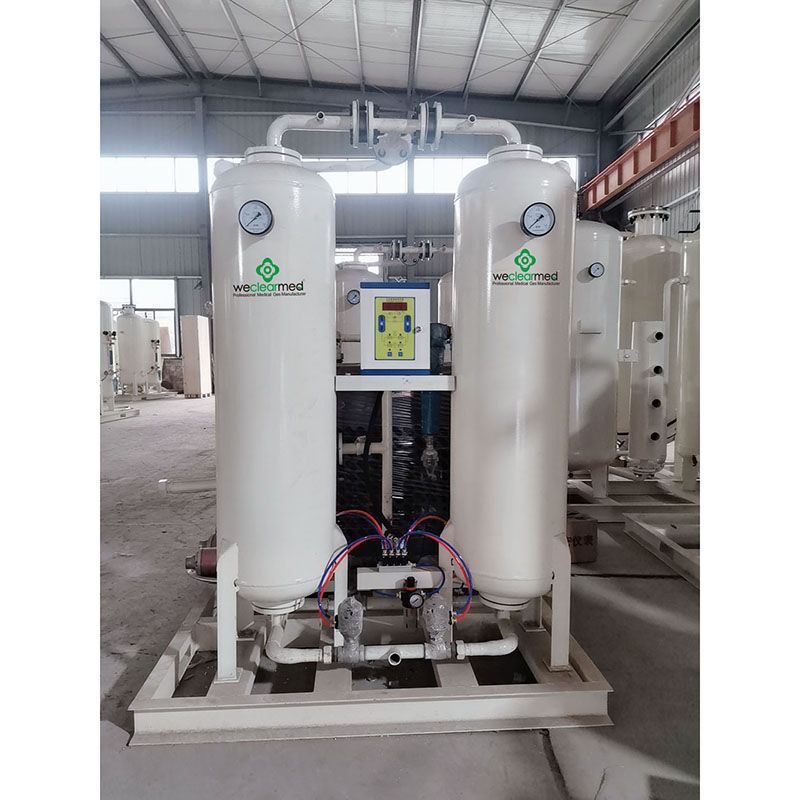

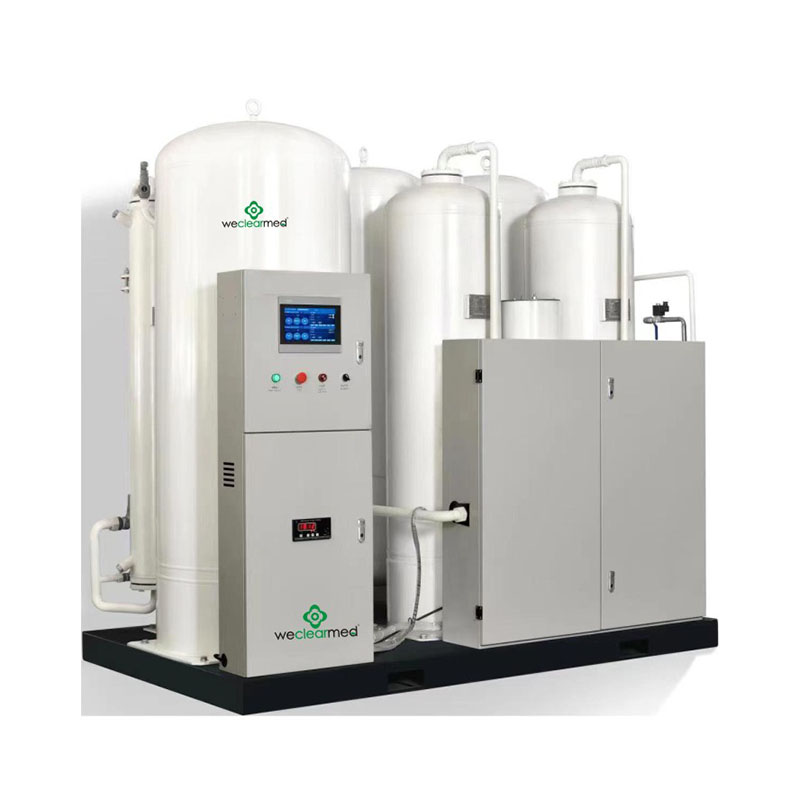

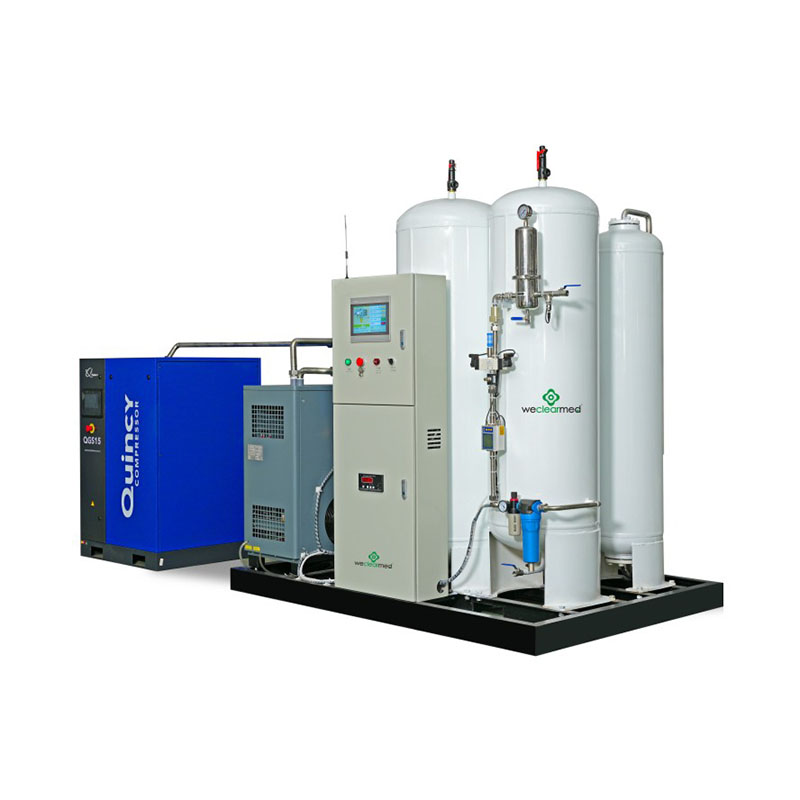

PSA Medical Oxygen Generator

We are a Chinese company for medical equipment.We have our own factory.We produce Weclearmed® PSA medical oxygen generator.It uses Pressure Swing Adsorption(PSA) technology to separate the oxygen from the air.Our oxygen machine is effective,reliable and safe.The oxygen station could supply pure oxygen for all kinds of hospitals.We can customize oxygen generating machine to the customer site and installation conditions.

How it works

The air first go into air compressor,then through refrigerated air dryer to be dried and purified.Then under the normal temperature low pressure,using the selectivity of zeolite molecular sieve for oxygen adsorption.Oxygen gas gathers at the top of the adsorption tower and then enters oxygen storage tank.Dust,bacteria and peculiar smell are removed by different filters to achieve high quality oxygen.The purity is 93%±3%.

Specification:

Oxygen generators capacity: 3Nm³/h~100Nm³/h (single unit)

Oxygen purity: 93%±3% (PSA technology)

Power supply: 380V/220V

Out pressure: 3~0.55Mpa (adjustable)

Operation noise: ≦85 dB (A)

Automatic start/stop

Built in purity analyzer for continuous monitoring
